4 inch recessed lighting dw085 LED Recessed Spotlight retail SUMBAO

4 inch recessed lighting dw085 LED Recessed Spotlight retail SUMBAO

Brand Name
SUMBAO Lighting
Delivery Time
Normally 10 Days (depends on order quantity)
OEM/ODM
Both acceptable
Warranty
3 Years(Lumen maintenance>90%)
Brand: SUMBAO Lighting
Type: DW030S-1 LED Recessed Light
Size: 154x154x186mm
Color: Dumb white
Color temperature: 2700K/3000K/3500K/4000K/5000K
Material: Industrial Al + engineering plastic
Light source: Imported COB chip
Power supply: Intelligent constant current driver
Wattage: 24W/30W
Beam: 15°/20°
Installation: Embedded
Hole: 135X135mm
Applications: Shopping center, Clothing store, Supermarket, Exhibition room, Furniture store etc.
Company Advantages
1. By keeping track with the market development, we are occupied in manufacturing and trading a wide array of LED Recessed Spotlight.
2. If You Think Our Proposal Are Acceptable, Please Let Us Have Your Order At Early Date, The quality of our products and services enable us to meet the expectations of our customers and ensure our success,With Years Of Experience In Making 4 inch recessed lighting, Dongguang SUMBAO Lighting Technology Co. Ltd Is Known For Our Outstanding Performance, Our Company Is Your Good Choice.
3. The New LED Spotlight is easy to assemble and has plenty of low profile recessed lighting. a strict QC team and advanced testing system to ensure supreme quality before shipment
Specification

Sumbao 24W/30W CREE-COB DW030S-1 LED Recessed Light 154x154x186mm For Shop Decoration
Type
Wattage
Temperature
Beam
Voltage
CRI
Light source
Life(H)
Size
DW030S-1
24W
2700K
3000K
3500K
4000K
5000K
15°
□20°
AC220V
≧80
CREE/SHARP30000
154X154X186mm
□30W


Sumbao brand * fashion and professional


7 Advantages * create the perfect product

  • Intelligent circuit
    Stable performance

  • Optical lens
    High efficiency

  • Sumbao brand
    Professional quality

  • Environmental protection
    Material Safety

  • Green light source Energy saving
    Environmental protection

  • Extreme cooling
    Long life

  • Simple and fashion
    Art of aestheticism

High-level configuration, make to excellent quality.

Product details
Lens
The high light twin lens and high luminous efficacy make the light soft and uniform.
CREE-LED
It’s a global brand with high efficiency, high CRI and long service life.
Driver
It’s made of the intelligent IC, the constant current control and several protections.
Radiator
The radiator is used of ultrathin thin fin design, it is made of pure industrial Al, good heat radiating performance.
Anti dazzle
The most advanced light technology,make the anti dazzle achieve the best.
Installation
The integral spring clamp and the latest upgrade structure, it’s convenient to install and adjust.



Fashion boutique * leading the trend

Our Project





Parameters of product

Light distribution curve

  • Angle
    Graph
  • 12°

  • 15°

  • 20°

Luminance scatter gram

The average of effective luminous



Facular color temperature contrast

  • The 3000K warm white is suitable for deep color furniture exhibition.

  • The 4000K anature white is appropriate for light color furniture, supermarket, clothing store etc.

  • The 5000K cold white is apply for modern furniture, upscale market, exclusive shop.

Comparison of spot Angle

  • 12°

  • 15°

  • 20°


Product schematic diagram






Installation process:

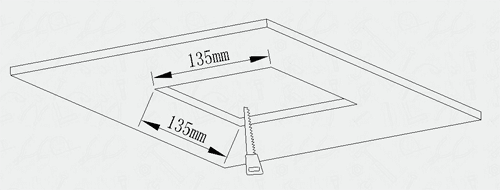

On the carrier (ceiling) according to the above size square shaped holeTo the above picture, make the driving connected to the grid. (Electrical should turn off the power switch)The lamp body is arranged in the square holes, And along the arrow direction to promote and tightly.

Using a screwdriver or other tools, make the lamp box to the right and locking.The left shown, as the screws tightened, the spring clamp will be stuck in the ceiling surface, so to achieve the purpose of fixing the lamp.


Here the installation is completed. When you want to regulation, please use hand hold the lamp, and push it up to complete the adjustment of need angle.
